Heyaansh
Container Classroom
40GP Digital Learning Classroom
A compact, purpose-built learning space with floor seating, a 65-inch interactive digital board, controlled access, natural ventilation and emergency egress.
40-Foot General Purpose

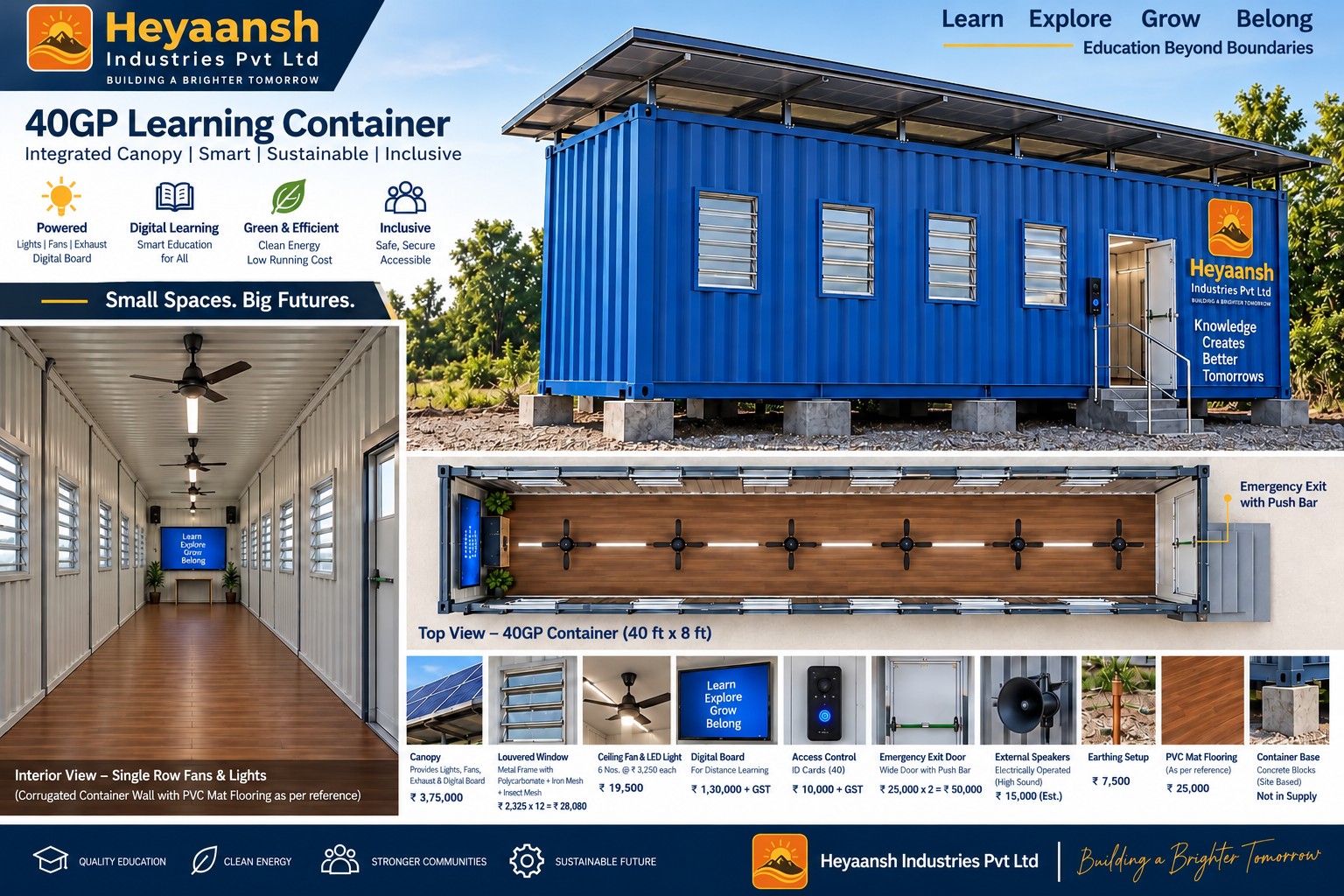

Exterior concept visual for the Container Classroom
Concept reference image for the page. Final fabrication details, openings, finishes and services depend on the approved site requirement.
A practical container classroom
Designed as a self-contained learning environment using a 40GP container, with floor seating, digital teaching, controlled access, ventilation, lighting, fans and emergency egress integrated into the classroom specification.
40GP Container Classroom
Purpose-built learning classroom in the 40GP format with the listed classroom systems and final site-specific configuration confirmed against the approved requirement.
Full-Roof Shade Canopy
An elevated metal canopy covers the complete container roof and reduces direct heat loading on the steel shell.
Why add the full-roof canopy?
In the 26 Aug 2026 Maraimalai Nagar side-by-side field test, the measured roof surface at 12 PM was 67.0°C without canopy and 32.6°C with canopy.
These are measured roof-surface temperatures, not guaranteed indoor-air temperatures. Actual classroom conditions depend on weather, orientation, ventilation, occupancy, materials and site conditions.
Practical 40GP learning layout
Commercial pricing is intentionally not broken down on this page. Final quotation depends on selected configuration, site requirements and approved drawings.
Floor-based learning
No benches. PVC mat-based floor finish suitable for children to sit and learn.
Corrugated container interior
Container character retained; corrugated steel wall profile rather than a decorative flat-room finish unless separately specified.
Fans & lighting
Six fan/light points arranged along a single longitudinal centre line—not dual rows.
Louvered windows
12 metal-framed louvered windows with polycarbonate louver panels, iron mesh and insect mesh.
Emergency exits
Two wider emergency exit doors with push-bar operation, subject to final approved placement and egress requirements.
Access control
eSSL K30 Pro biometric/RFID access-control system; ID-card access can be configured for the classroom requirement.
Digital learning
65-inch interactive Android digital board for classroom and distance-learning use.
External speakers
Electrically operated external loudspeakers can be integrated for announcements and learning support.
Earthing
Dedicated electrical earthing provision included in the classroom electrical planning.
Container mounting
Concrete support blocks are site-based civil works and are not part of standard supply.
Book-storage rails
SS rails/racks require approved drawings, dimensions and specifications before supply can be confirmed.

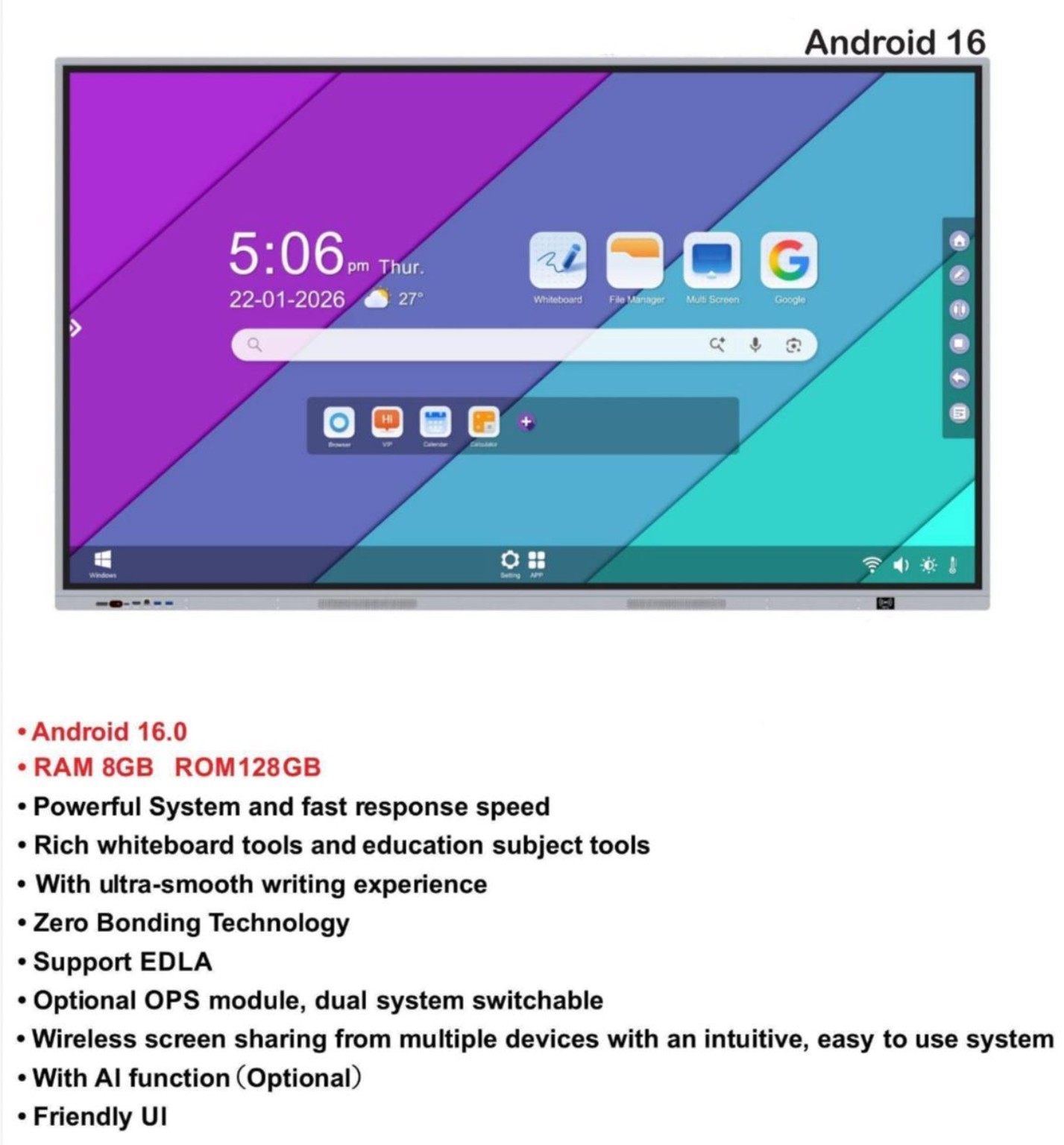

Interactive board specification
The classroom specification is standardised on the 65-inch MY PANEL-01. Larger 75-inch and 86-inch variants shown in supplier literature are not part of this classroom option.
65-inch MY PANEL-01
65-inch LCD, 3840 × 2160 (4K), 16:9
OD35 / DLED / 400 nits; optional QLED/local dimming per supplier sheet
IR, 40 touch points, 1 mm touch accuracy
60 Hz, 178° viewing angle
Anti-glare 3.2 mm tempered glass, Mohs 7 grade
Android 16.0
A72 ×4 + A53 ×4, 2.0 GHz; G52 MC3
8 GB RAM / 128 GB storage
10 writing points, 2 mm writing over >90% area
≤5 ms; finger, stylus and opaque-object input
USB, HDMI, Type-C, LAN, RS232, audio and touch interfaces per supplier specification
100–240 V, 50–60 Hz; rated power <190 W; built-in 2 × 15 W speakers
1485.2 × 105 × 885.3 mm; net weight 39 ± 2 kg
Whiteboard tools, wireless screen sharing, EDLA support, optional OPS and optional AI functions
eSSL K30 Pro
Biometric time-attendance and access-control terminal suitable for controlled classroom entry. The classroom requirement can use ID cards while retaining fingerprint capability for authorised administration.
User capacity: 2,000
Fingerprint capacity: 2,000
RFID card capacity: 2,000
Transaction storage: 100,000–200,000 logs, firmware/variant dependent
Display: 2.8-inch TFT
Sensor: 500 DPI optical
Identification speed: ≤1 second
Algorithm: Version 10
FAR: ≤0.0001%
FRR: ≤1%
Backup: Built-in battery backup
Configuration note
Final window locations, emergency-exit positions, structural openings, electrical protection, earthing, access-control wiring, digital-board mounting and site civil works must be confirmed against the approved project drawings and site conditions before fabrication. Product specifications are based on the supplier information provided and should be reconfirmed at order stage.
Heyaansh Container Solutions
