Ultrasonic Cutters Catalogue
Product range, FIBC and PP woven applications, machine features and enquiry information.
PDF · 1.9 MB · 4 pages · Website file checked 11 July 2026
Open Ultrasonic Cutters Catalogue PDF
Packaging & Production — Product Equipments
Precision cutting. Zero fraying. Ever.
Ultrasonic Fabric Cutting & Sealing Machines for FIBC, PP Woven & Industrial Textiles
We supply and support Ultrasonic Fabric Cutting & Sealing Machines purpose-built for the FIBC, packaging, apparel, and industrial textile industry.
Using 20 kHz high-frequency ultrasonic vibrations, the machine cuts and seals the edge simultaneously — no blades that burn, no threads that fray, no finishing required.
18 m/min
Cutting Speed
≤ 0.1 mm
Accuracy
3.0 kW
Generator Power
20 kHz
Frequency
Technical Overview
Engineered for clean, precise, high-efficiency fabric processing.
The Ultrasonic Fabric Cutting & Sealing Machine generates controlled frictional heat at the cutting point using high-frequency ultrasonic vibrations. This enables simultaneous cutting and edge sealing — with zero fraying, burning, or deformation on synthetic and blended fabrics.
Its advanced precision control system ensures uniform, stable performance during continuous production, while the robust build supports high-speed operation with minimal operator effort. Manufacturers can reduce fabric waste, improve edge consistency and streamline the cutting workflow.
Supported Materials
PP Woven FabricPE-Coated FabricLaminated FabricBOPP RollsNon-Woven FabricBlended Synthetics
Technical Specifications
Ultrasonic Generator3.0 kW, 20 kHz
Cutting Speed8 – 18 m/min
Cutting Accuracy≤ 0.1 mm
Seal Width1 – 12 mm (adjustable)
Trim Width10 – 50 mm (dual-side)
Horn Size120 mm standard + wide horns
Operating Temp.5°C – 40°C
Max. Humidity< 80% RH
Why Ultrasonic
Why ultrasonic beats conventional cutting
Traditional blades fray. Hot knives burn. Lasers are expensive. Ultrasonic does it right — simultaneously.
Sub-millimetre Precision
Cuts to ≤ 0.1 mm accuracy at speeds up to 18 m/min, supporting repeatable edge finishing with controlled settings.
Zero Fraying, Zero Burning
High-frequency ultrasonic vibrations seal the edge simultaneously with cutting, eliminating fray, burn marks, and deformation on synthetic fabrics.
Energy Efficient
The 3.0 kW ultrasonic generator supports lower-energy cutting than many hot-knife or laser workflows while maintaining repeatable output.
Industry-Ready Integration
PLC controls, recipe storage, and real-time display make it straightforward to integrate into existing FIBC or packaging production lines.
Machine Features
Every aspect of the machine is designed for production-line reliability and ease of use.
User-Friendly Controls
- 10" touchscreen HMI for easy operation
- PLC-based control system for stable performance
- Recipe storage for multiple fabric settings
- Real-time display for smoother running
- Built-in safety ensures operator protection
Tooling & Attachments
- 120 mm horn delivers clean, sharp sealing
- Wide horns enhance sealing for thick fabric
- Quick-change blade system improves flow
- Guided rollers maintain smooth tensioning
- Separate scrap collection keeps workflow clean
Physical & Build
- Compact size suits most factory layouts
- Heavy frame ensures solid machine stability
- Operates reliably within 5°C to 40°C
- Performs best in humidity under 80%
- Strong, durable build for long service life
Process Control & Safety
Built-in safety. No compromises.
Over-load, over-current & misfeed protection
Anti-static discharge system
Auto temperature & amplitude control
Enclosed ultrasonic cabinet for low noise
Industry Applications
Designed for any sector that demands clean edges, consistent output, and zero waste.
FIBC / Bulk Bags
Apparel & Garments
Medical Textiles
Industrial Packaging
Non-Woven Products
Agricultural Fabric
Spare Parts Pricing
Machine & Spare Parts Pricing Sheet
EXW prices for the machine and spare parts are shown below. Contact us for freight, installation, taxes, and final order quotation.
Download Pricing SheetPhoto
Model
Description
Qty
Price (EXW)

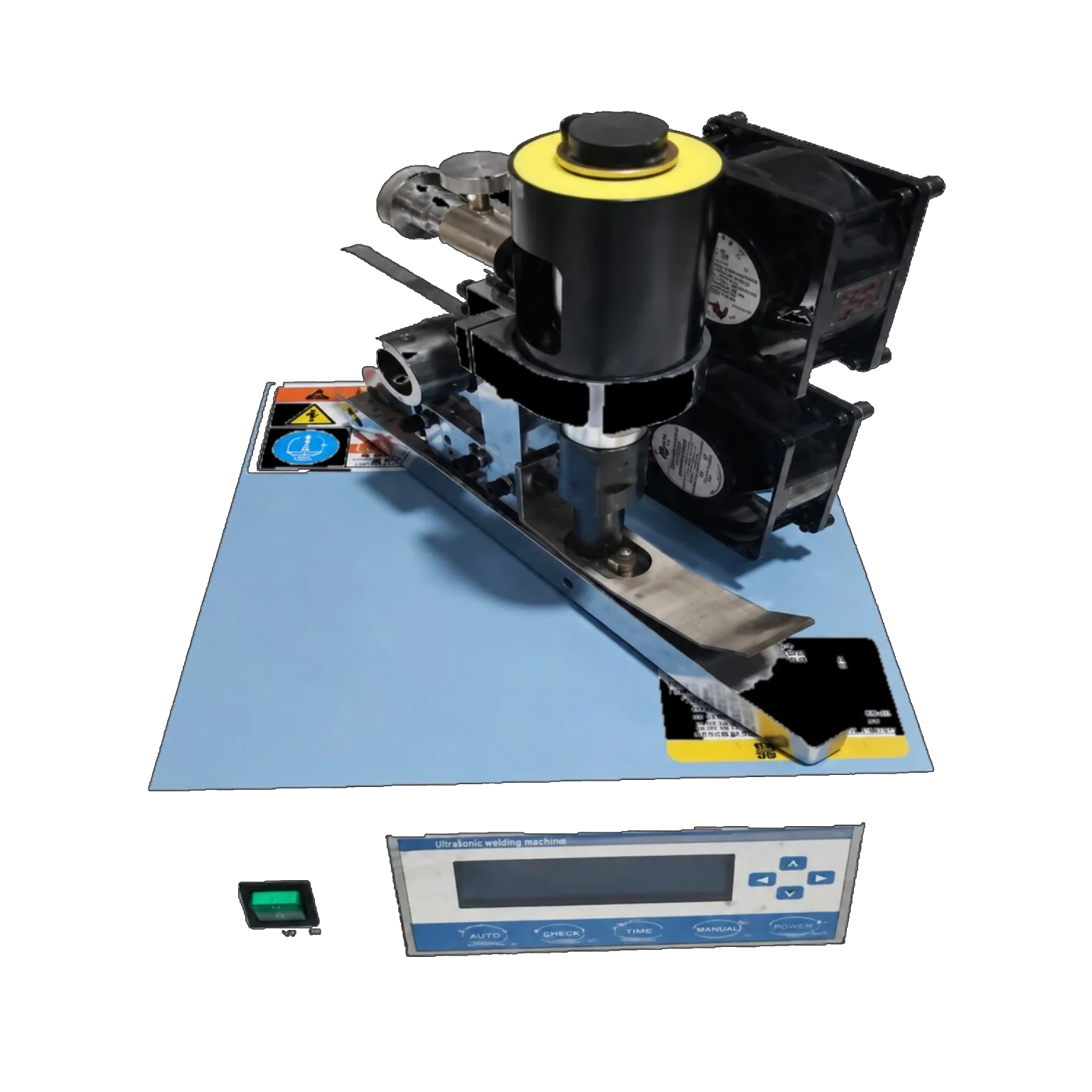

UL-C PRO
PP Woven Online Tube Cutting Machine
220V, 50KHZ · 800W Single Phase · 50-300 GSM · 1 to 12.8 M/Min
Qty1 PCS
Price (EXW)$1,015

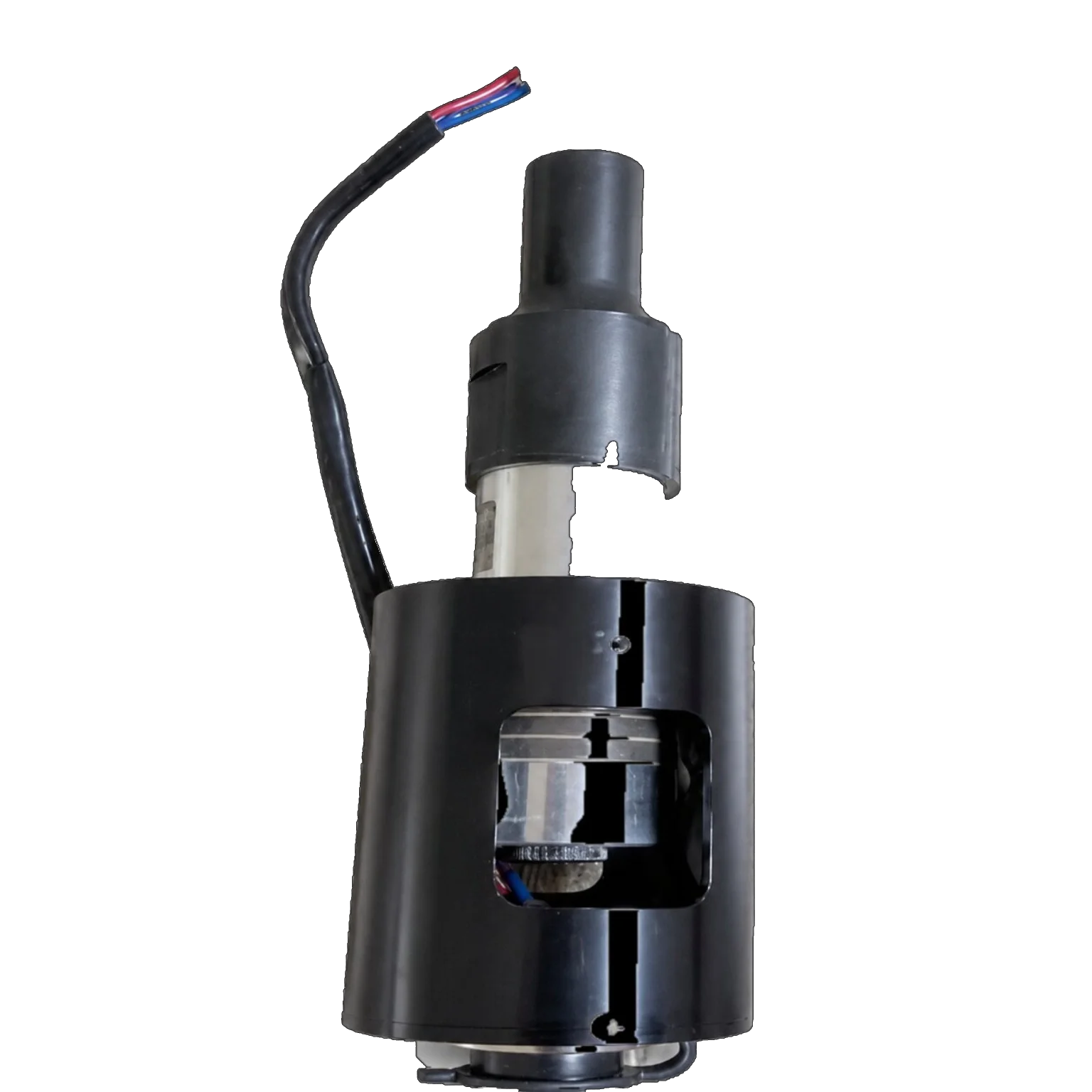

UL-C HORN
Horn
Qty1 PCS
Price (EXW)$655

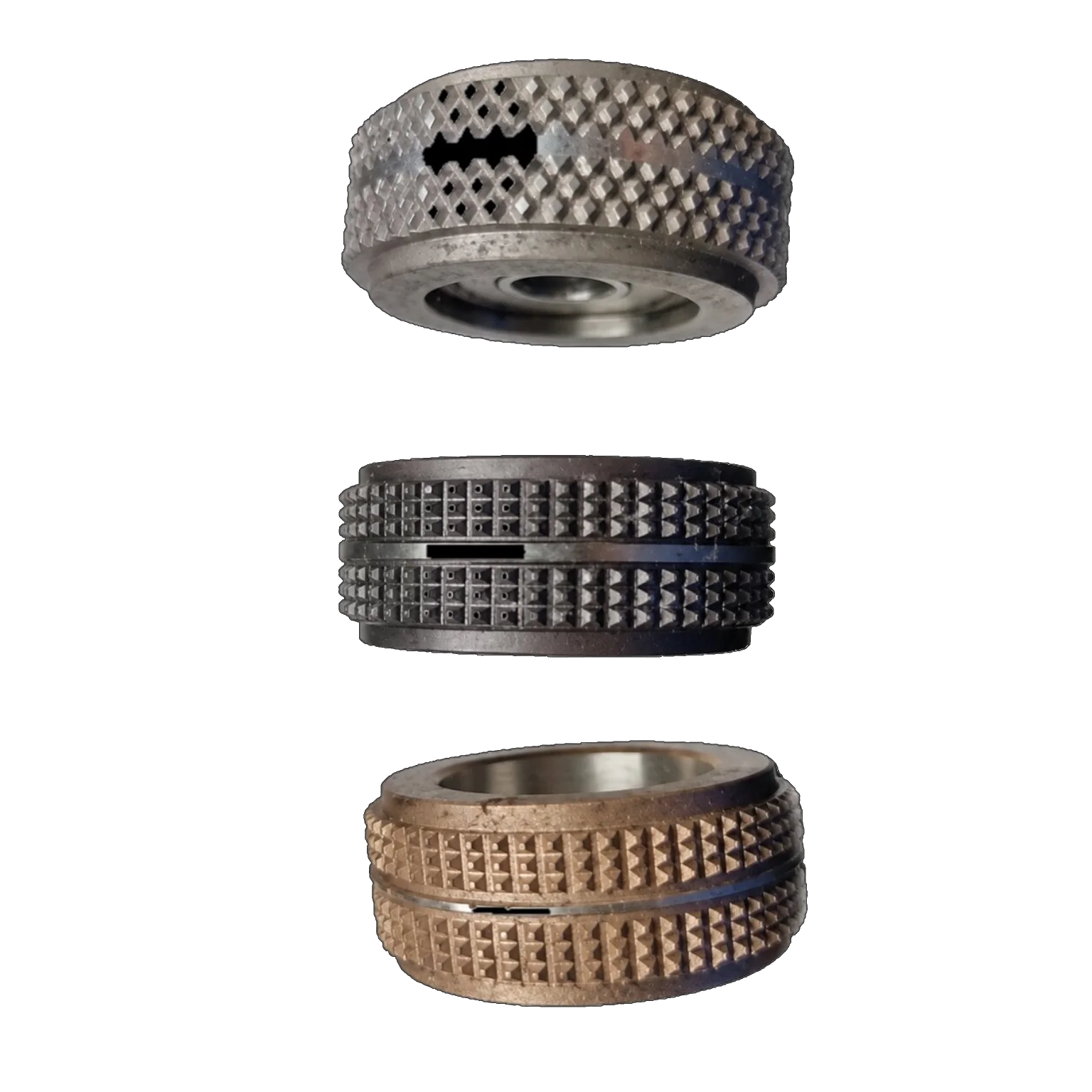

UL-C Wheels
Wheels
Choose the one you prefer
Qty1 PCS
Price (EXW)$110

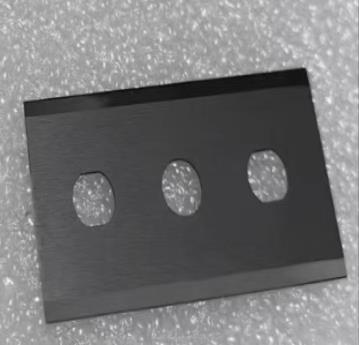

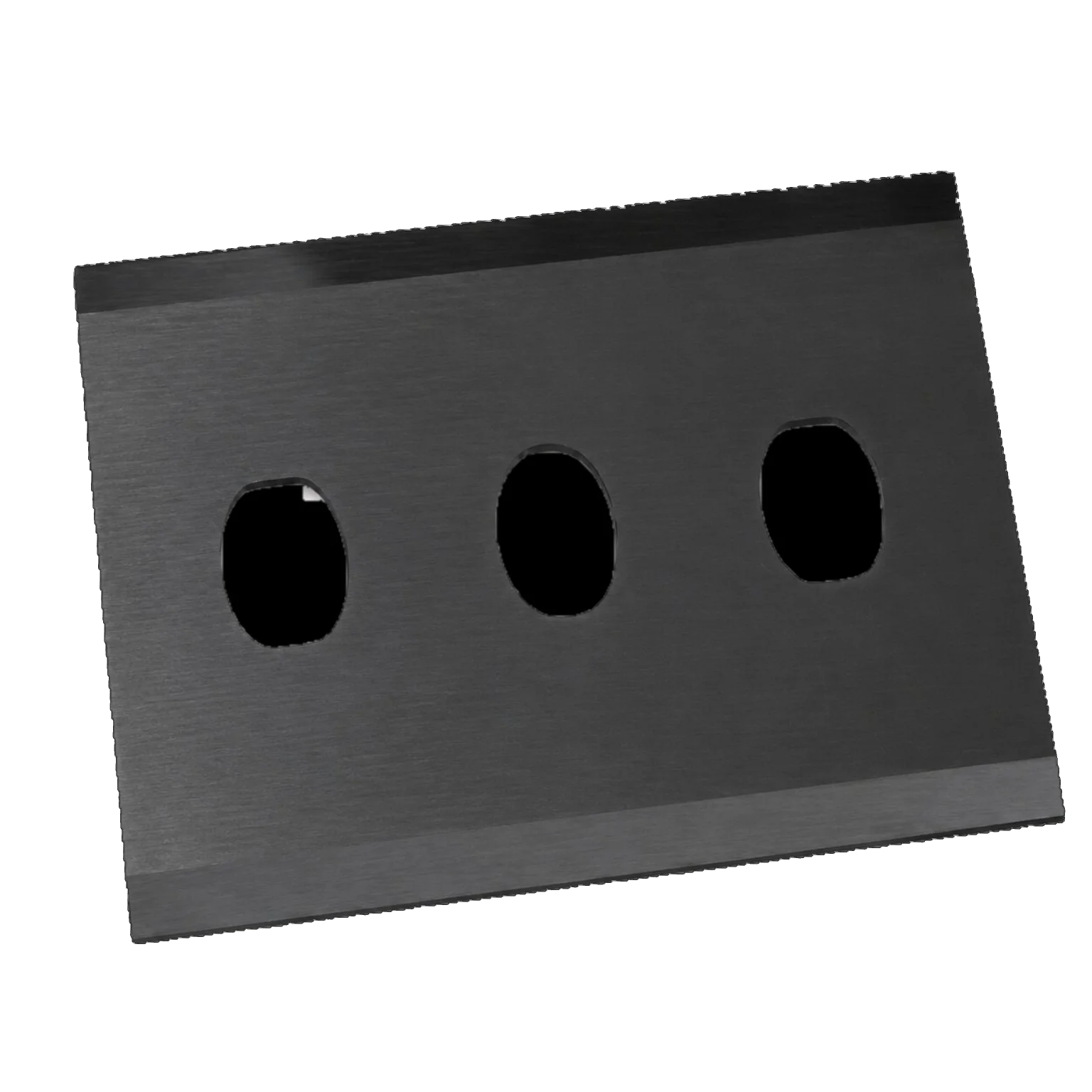

UL-C Blade
Blade
Can be changed as 4 PCS Blade
Qty1 PCS
Price (EXW)$25

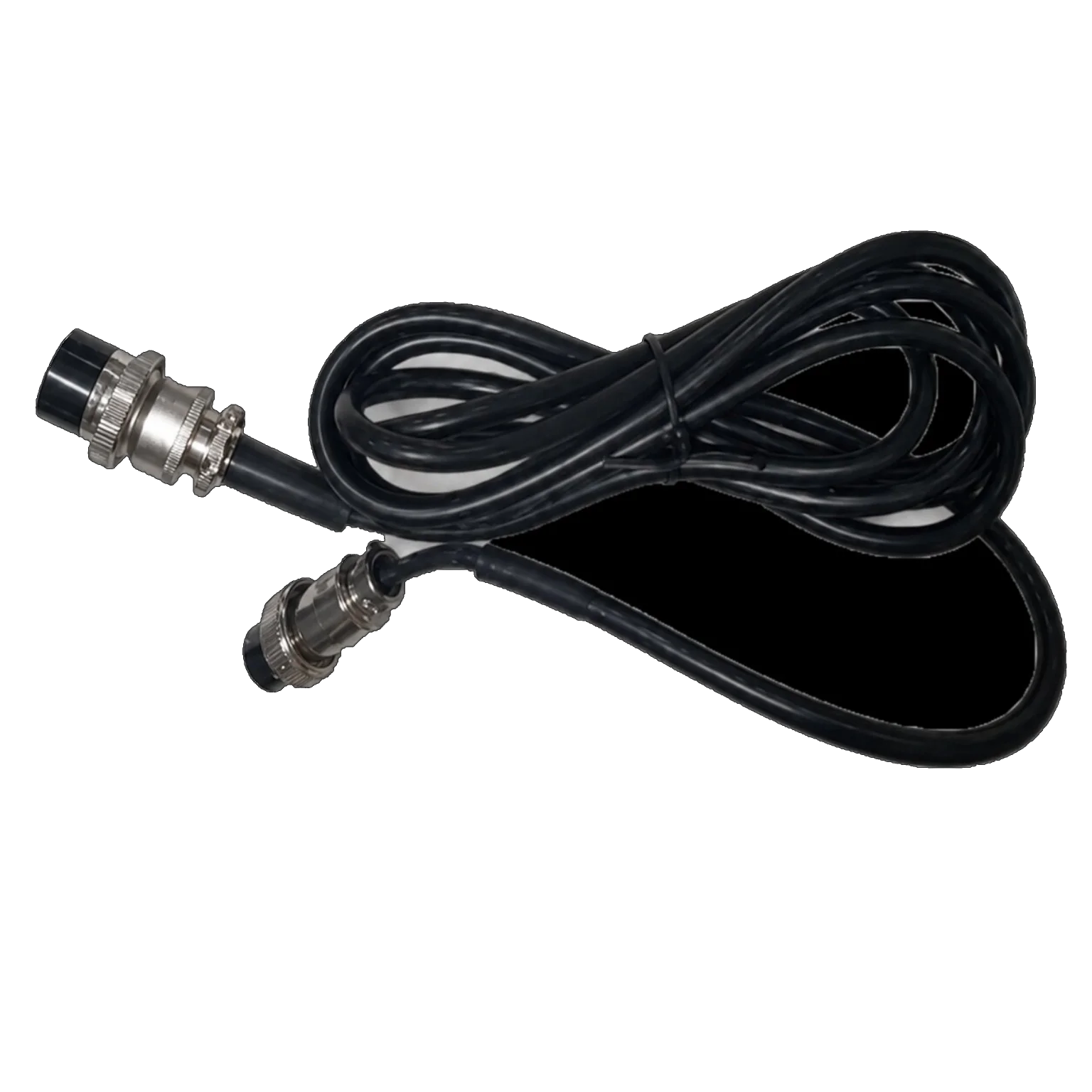

UL-C UC
Ultrasonic Cable
Qty1 PCS
Price (EXW)$20

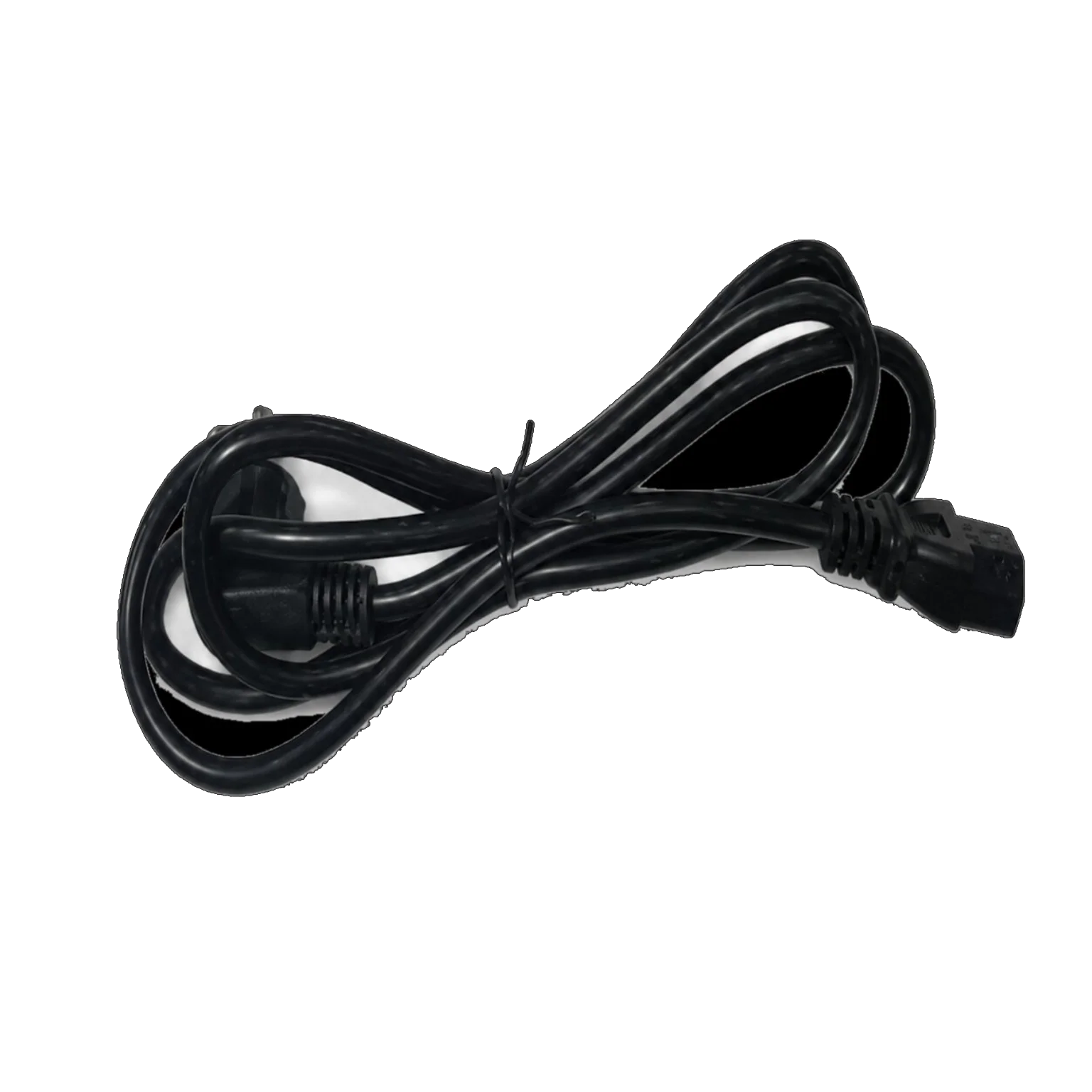

UL-C PC
Power Cable
Qty1 PCS
Price (EXW)$20

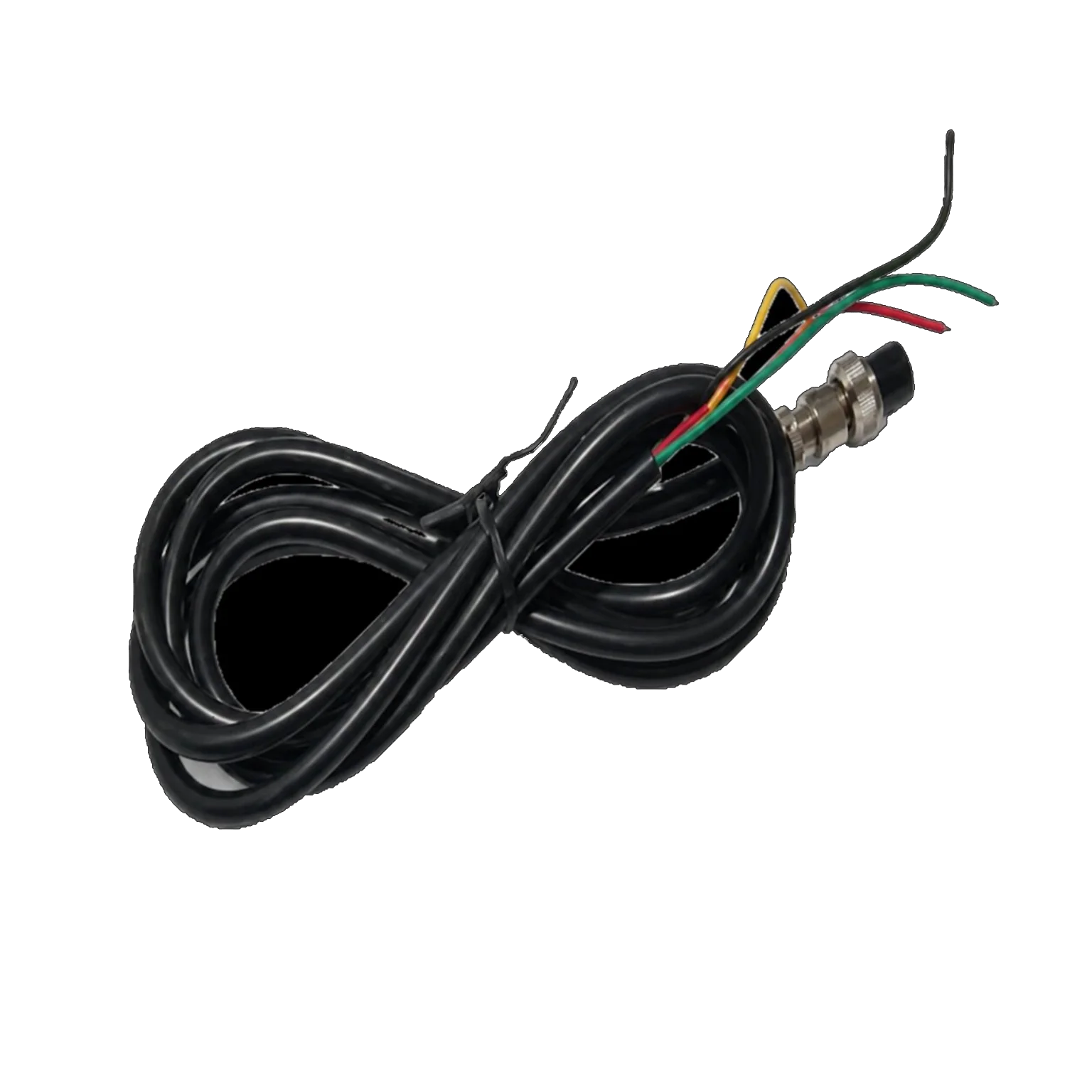

UL-C MC
Circular Looms Connection Cable
Qty1 PCS
Price (EXW)$20
Pricing Note
Prices are in USD, EXW. Product images retained from the supplied quotation for reference.
FX Basis / Quotation Condition
Pricing is based on 1 United States Dollar (USD) = 6.78 Chinese Yuan (CNY) as of 9 Jun, 12:00 pm UTC.
Any major exchange-rate change shall be considered at the time of order.
Who Should Buy This Machine?
This machine is ideal for FIBC manufacturers, PP woven fabric processors, laminated fabric converters, non-woven product manufacturers, packaging units, tarpaulin producers, geotextile units, and industrial textile factories.
If your current cutting process causes fraying, burning, poor edge finishing, high labour dependency or inconsistent fabric edges, ultrasonic cutting can improve edge finishing and production flow.
Problems It Solves
Frayed fabric edges
Burn marks from hot-knife cutting
Uneven manual trimming
Excess fabric wastage
Slow finishing process
Inconsistent sealing results
Operator-dependent cutting variation
Difficulty handling synthetic and laminated fabrics
Request a Quote
Frequently Asked Questions
Common questions about our Ultrasonic Fabric Cutting & Sealing Machines.
Which materials can the ultrasonic cutter process?+
It can process PP woven fabric, PE-coated fabric, laminated fabric, BOPP rolls, non-woven fabric and blended synthetic materials.
Why use ultrasonic cutting instead of hot-knife cutting?+
Ultrasonic cutting cuts and seals at the same time, reducing fraying, burn marks, deformation and finishing work.
Is it suitable for FIBC production?+
Yes. The machine is suitable for FIBC, bulk bag, packaging and industrial textile production.
What is the cutting speed?+
The cutting speed range is 8–18 m/min depending on material and production conditions.
Do you provide spare parts?+
Yes. We supply machine and spare parts such as horn, wheels, blade, ultrasonic cable, power cable and circular loom connection cable. EXW USD pricing and FX basis are shown in the pricing sheet.
Ready to upgrade your
cutting process?
Get in touch with the Heyaansh team for pricing, demo requests, technical specifications, or to download the full product brochure.
info@heyaansh.in+91 90030 48815 (WhatsApp)
4th Floor, Y215, PD Trade Centre,
Anna Nagar, Chennai, Tamil Nadu 600040
Anna Nagar, Chennai, Tamil Nadu 600040
Downloads
Document resources
Review the summary before opening a PDF. File size and page count are shown to help mobile users choose the appropriate document.
Ultrasonic Cutter Operating Manual
Seven-page operating and safety reference for the FIBC ultrasonic cutting equipment.
PDF · 1.2 MB · 7 pages · Website file checked 11 July 2026
Open Ultrasonic Cutter Operating Manual PDFLoom Installation Manual
Eight-page installation reference covering loom integration, positioning and connection requirements.
PDF · 5.4 MB · 8 pages · Website file checked 11 July 2026
Open Loom Installation Manual PDFUltrasonic Cutters Quotation
Current website copy of the machine and spare-parts quotation. Confirm commercial validity before order placement.
PDF · 2.3 MB · 1 pages · Website file checked 11 July 2026
Open Ultrasonic Cutters Quotation PDF
